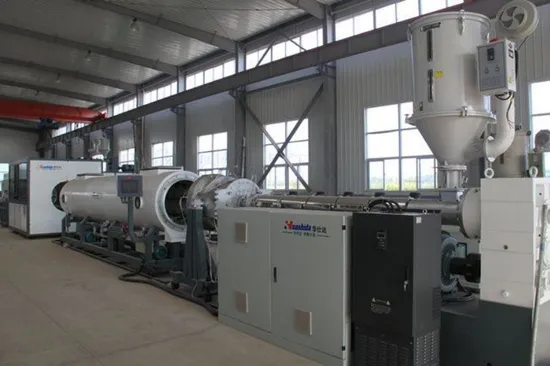

Automatic HDPE Outer Jacket Vacuum Calibrating HDPE Insulation Pipe Production Line

• Overview
• Product Description
• Product Specifications
• Our Advantages
• Applications
• Company Profile
• Certifications

Overview

Basic Info.

Model NO.	Pre-Insulated Jacket line
Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Technical Service with Free,Training The Workers
Application	Producing Pre-Insulated Pipe Jacket
Raw Material	PE
Cutting Method	Dust-Free Planetary Cutting
Calibration Method	Vacuum and Water Spraying Cooling
Transport Package	Standard Package
Specification	110-2200mm
Trademark	huashida
Origin	Qingdao, China
HS Code	8477209000
Production Capacity	30 Sets/Year

Packaging & Delivery

Package Size1200.00cm * 230.00cm * 260.00cm Package Gross Weight1000.000kg

Product Description

Machine Advantages: High-efficiency extruder delivers greater output with stable, consistent performance Produces pipes with uniform, smooth walls to minimize material waste (adjustable thickness available) Edge trimming-free, single-step forming process Highly automated operation requiring just one operator, significantly reducing labor costsKey Feature - High-Efficiency Single Screw Extruder: Equipped with barrier & mixing head screw Features newly designed slotted barrel (channel) Ensures excellent plasticization, high output and reliable performance

The HDPE pre-insulated pipe extrusion line is widely used for producing protective jackets for thermal insulated pipes used in district heating, hot and chilled water piping systems, gas pipelines, water mains, geothermal heating, and more.

Qingdao Huashida, a global plastic extrusion equipment R&D manufacturer and solution provider, 70% of our customers from Europe, the United States, the Middle East and Southeast Asia and other overseas countries. Huashida's R&D and manufacturing insulation pipe production line is widely used in municipal heat, sewage, water supply, natural gas and communication pipe network construction, crude oil pipeline transportation and agricultural irrigation. Relying on our innovation and product strength, we have provided customized technical services for more than 1000 manufacturers , including more than 400 domestic enterprises and more than 500 foreign enterprises and established a 24-hour global service response mechanism to effectively solve customer concerns.

Product Description Vacuum Calibrating HDPE insulation pipe production line

The vacuum calibration polyurethane insulation pipe is a kind of high efficiency pre insulated pipe. It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.

The working steel pipe is in the innermost layer and assumes the conveying medium(For example: hot water, steam) function. In the middle there is a PU insulation layer, playing the role of heat preservation and insulation, which can effectively reduce heat loss. The outermost layer is a plastic outer protective tube, usually made of materials such as high-density PE. It can protect the insulation layer from the external environment erosion, but also make the pipe appearance more regular.

Main Extruder

Structural features: high strength, wear resistance, corrosion resistance, good screw plasticization effect; The temperature control system adopts ceramic heating coils for heating and fan cooling, and uses temperature sensors, temperature controllers, etc. for automatic temperature control.

Control system

Adopting Siemens PLC centralized control and unique DCL software design. Implemented interoperability between systems, windows, and human-machine interfaces, endowing machines with AI intelligence and simple operation. Save labor and effort, with no safety hazards

Planetary cutting machine

By using the Haff block planetary cutting machine, it can ensure that the cutting section is vertical and neat, without the need for secondary processing. Adding a powder collection system can ensure a clean and tidy production site.

Jacket Extrusion Line

Polyurethane foaming system

Threading platform

Product Specifications

Style	PE-110/600	PE-365/760	PE-655/1380	PE960-1680
Main extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ 365-Φ 760 mm	Φ 655-Φ 1380 mm	Φ 960-Φ1680mm
Capacity	250-300kg/h	400~500 kg/h	850~950 kg/h	900-1100KG/H
Installed power	160kw	420 kw	480 kw	580KW
Length	35m	36 m	40 m	48m
