Hopetech Cht3568 Battery Comprehensive Tester Battery Integrated Test System

Overview

Basic Info.

Model NO.	CHT3568
Test Region	Internal Resistance
Application	Lead-acid Battery
Customized	Customized
Test All Features	1.1-2 Seconds
Offer	Li Ion Battery Project
Interface	RS232 Interface, Ethernet Interface, External I/O
Capacity Test Range	0~99999mAh Minimum Resolution 1mAh
Product Name	Hopetech Cht3568 Battery Comprehensive Tester Batt
Usage	Battery Measurement
Function	Voltage, Resistance, Capacity Test
Name	Li-ion Battery Test Machine
Display	LCD Screen
Transport Package	Carton
Specification	42x42x33cm
Trademark	Hopetech
Origin	China
HS Code	9030332000
Production Capacity	5000 Sets Per Month

Packaging & Delivery

Package Size 42.00cm * 42.00cm * 33.00cm Package Gross Weight 9.000kg

Product Description

Product Description

https://ckt2017.en.made-in-china.com/product-list-1.html

Brief Introduction
CHT3568 series battery comprehensive tester is a high-precision wide-range, high-performance microprocessor-controlled battery integrated tester. It uses latest battery testing technology and industrial design, with powerful, fast and stable testing. The device test via Multi mode programming, which can automatically complete programming test. One station can complete test of multiple previous stations and improve test efficiency; one machine can complete the battery charge and discharge, voltage, AC & DC internal resistance, over-charge and other routine tests. Various interface and communication protocol can meet the installation requirements of automation equipment, with a variety of harsh EMC electromagnetic interference experiments, to ensure that the instrument can easily cope with various industrial site environments.
Specification:

	Model	CHT3568	CHT3568A
	Display	4.3-inch large screen LCD display
	Test parameter	Simultaneous measurement of all functions of power supply, load and AC internal resistance meter
Battery internal measuring range	Battery voltage measurement range	0~30V
	AC internal resistance test range	30 mΩ range 0.001 mΩ~30.000mΩ;minimum resolution 0.001mΩ 300 mΩ range 0.01 mΩ~300.00mΩ;minimum resolution 0.01 mΩ 3000 mΩ range 0.01 mΩ~3000.0mΩ;minimum resolution 0.1 mΩ
	Identify resistance measurement range	0.1 kΩ~999.9kΩ minimum resolution 0.1 kΩ
	Capacity test range	0~99999mAH minimum resolution 1mAH
Test speed	Static test	Test all functions:1.1~2 seconds
	Capacity test 1C current charge and discharge	3-4 hours
Test Accuracy	Voltage measurement accuracy	±0.05%rdg.±6dgt
	Current measurement accuracy	±0.3%rdg.±6dgt current(0~2.999A)±0.3%rdg.±6dgt current(3.000~15.000A)
	AC resistance measurement accuracy	±0.3%rdg.±6dgt
	Identify resistance measurement accuracy	10kΩ±1%
	Battery AH measurement accuracy	10AH±2%
Internal CNC power supply indicator	Output maximum voltage	20V (±0.3%rdg. ±6dgt)	24V (±0.3%rdg. ±6dgt)
	Output maximum current	5A (±0.3%rdg. ±6dgt)	15A (±0.3%rdg. ±6dgt)
	Ripple voltage	<100mV	<300mV
	Load Regulation	<1%
Internal CNC load indicator	Highest voltage	30V (±0.05%rdg. ±6dgt)
	Maximum current	3A(continuous) 15A(continuous) (±0.5%rdg. ±6dgt)	6A(continuous) 30A(continuous)60A(30s) (±0.5%rdg. ±6dgt)
	Overcurrent measurement range	0~15A minimum resolution 1mA	0~60A minimum resolution 1mA
	Maximum power	100W(continuous)	500W(continuous)1000W (30s)
	DC internal resistance test range	0~1000mΩ (±0.5%rdg. ±6dgt)
	Interface	RS232 interface, Ethernet interface, external I/O interface
	Size and weight	331mm*329mm*80mm; 4kg	331mm*329mm*80mm; 5.5kg

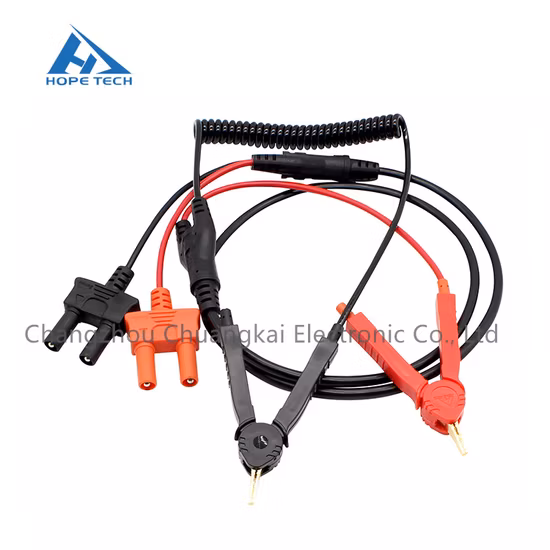

	Accessories	CHT9368, CHT9363A, CHT9702, CHT9800, BD9, AC power cord

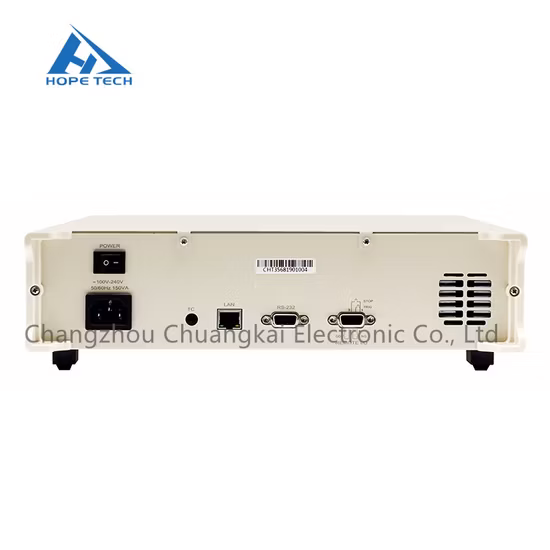

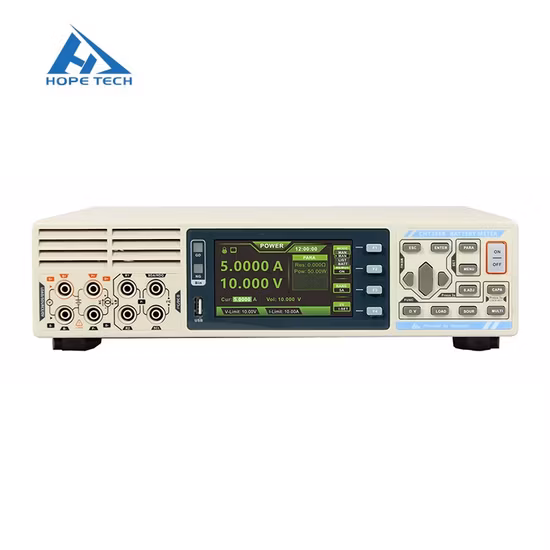

Detailed Photos

Packaging & Shipping

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

Company Profile

https://ckt2017.en.made-in-china.com/contact-info.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
